BPMN (Business Process Model and Notation)

This quiz will remind you with the basics of the BPMN that you need to know in your analysis work. It should be fun and easy.

download Export

search_insights Statistics

stylus_note White Board

Quran

calculate Calculator

dictionary Dictionary

fullscreen Full Screen

more_vert More

QUESTION OF

volume_mute Read quiz aloud

Views #: 1284

Questions #: 20

Time: 10 minutes

Pass Score: 80.0%

Style

Step

List

Mode

Exam

Practice

What is the primary purpose of a BPMN process model?

1 pts

volume_mute

To create system architecture

To visually represent business processes

To build databases

To model user interfaces

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Which of the following symbols in BPMN represents an activity or task?

1 pts

volume_mute

Event

Diamond

Rectangle

Arrow

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Identify the BPMN element shown in the image

1 pts

volume_mute

Start Event

End Event

Gateway

Task

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Which BPMN element is used to represent a decision point in a process flow?

1 pts

volume_mute

Gateway

Task

Event

Pool

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

What does the diamond-shaped symbol in BPMN indicate? (Select all that apply)

1 pts

volume_mute

A decision point (gateway)

A task

A split or merge in the process

An event

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Fill in the blank: A sequence flow in BPMN is represented by a(n) _________

1 pts

volume_mute

Missing

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

What type of BPMN event is represented by the symbol in the image?

1 pts

volume_mute

Message Event

Timer Event

Error Event

Signal Event

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

What does a black thick border around an event symbol in BPMN represent?

1 pts

volume_mute

Start Event

Intermediate Event

Boundary Event

End Event

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Which BPMN construct can be used to group activities that occur simultaneously?

1 pts

volume_mute

Sub-process

Sequence Flow

Parallel Gateway

Data Object

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

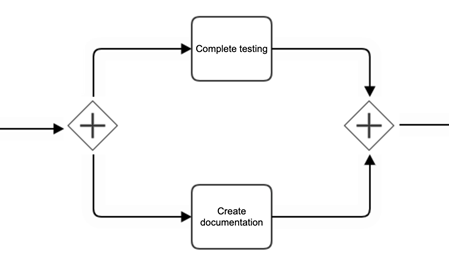

What is the purpose of the gateway in this diagram?

1 pts

volume_mute

To split the process into parallel paths

To start the process

To make a decision between paths

To end the process

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Which BPMN element is used to connect activities across different pools (i.e., across organizational boundaries)?

1 pts

volume_mute

Sequence Flow

Message Flow

Association

Signal

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

True or False: A BPMN pool represents a single department or participant in a business process

1 pts

volume_mute

True

False

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

In BPMN, what type of task is used when the work is performed by an external system or service?

1 pts

volume_mute

Service Task

Manual Task

User Task

Script Task

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Fill in the blank: A BPMN _________ event is used to model exceptions in a process, such as errors or timeouts

1 pts

volume_mute

Missing

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

What does the "+" symbol inside a task element represent?

1 pts

volume_mute

User Task

Gateway

Sub-process

Parallel Task

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Which of the following BPMN elements are used to indicate the end of a process? (Select all that apply)

1 pts

volume_mute

End Event

Message Flow

Termination Event

Sequence Flow

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

What is the role of a BPMN "Swimlane"?

1 pts

volume_mute

Represents a decision point

Organizes tasks according to the participant or department

Signals an intermediate event

Represents an external system

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

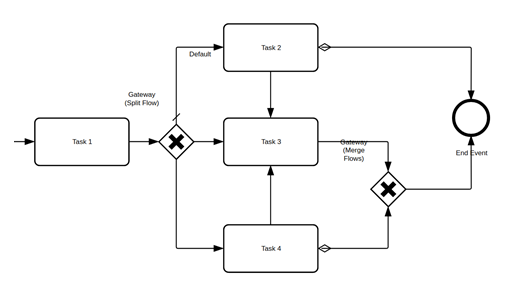

What type of BPMN flow is used to connect these tasks?

1 pts

volume_mute

Sequence Flow

Message Flow

Association

Data Flow

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

In a BPMN model, a circular event with a clock icon inside represents which of the following events?

1 pts

volume_mute

Message Event

Timer Event

Signal Event

Error Event

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation

Fill in the blank: In BPMN, a ___________ even is used to indicate that a process will wait for a specific event before continuing

1 pts

volume_mute

Missing

note_alt Add notes

flag Flag

volume_mute

Correct Answer

Explanation
